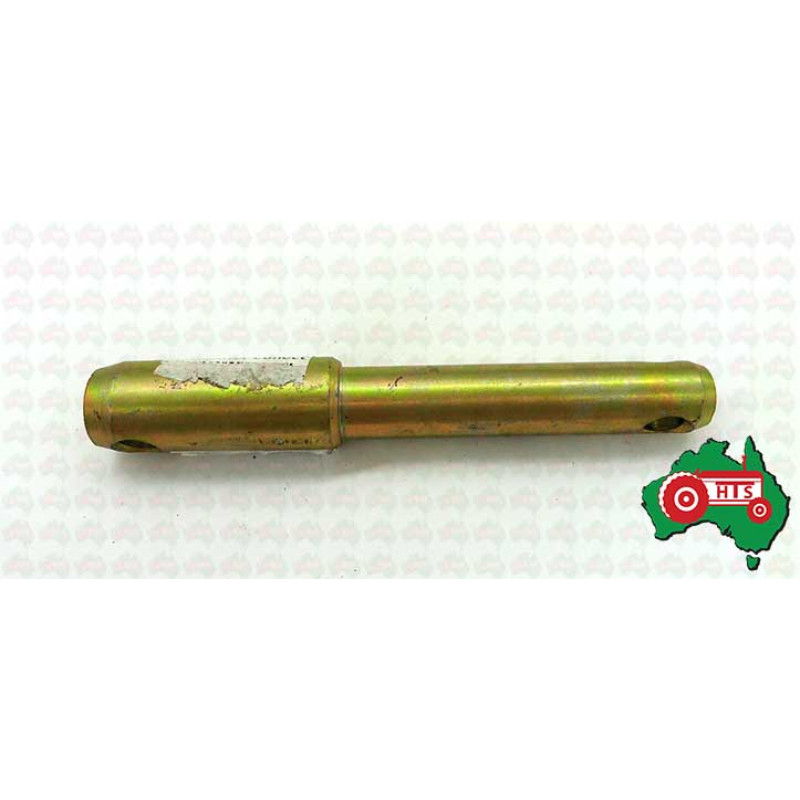

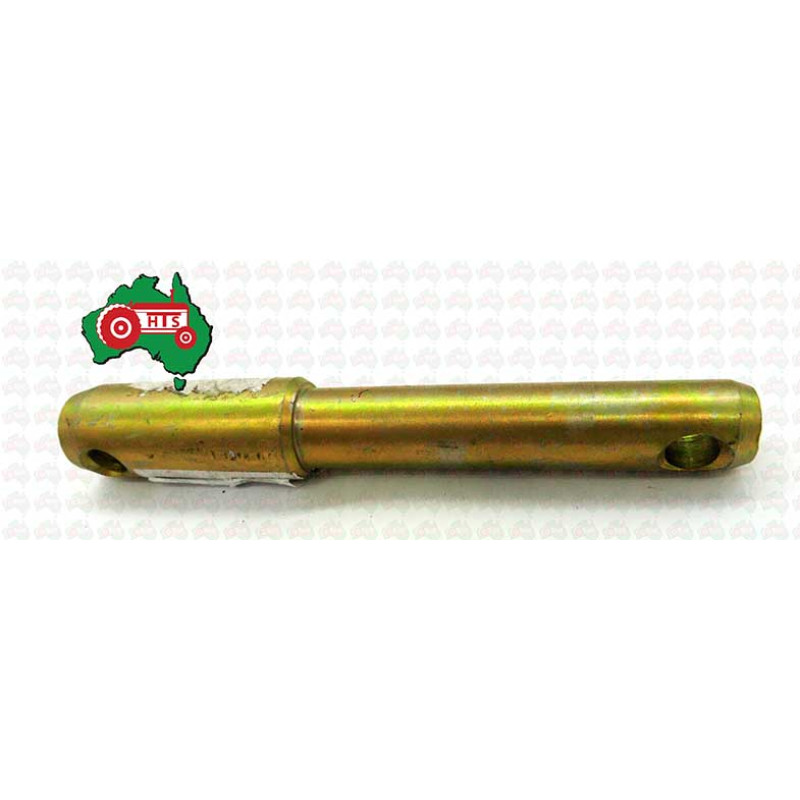

Tractor Massey Ferguson Lower Link Implement Pin 22x146mm Cat 1 765
Description & Approximate Sizes:
- 1 x Implement Pin
- Category 1
- Pin - 22.00mm (7/8")
- Overall Length - 146.00mm (5 3/4")
- Thread Size - 22.00mm (7/8" UNF)
- Thread Length - 40.00mm (1 9/16'')
- Working Length - 51.00mm (2")
- Hole ID - 12.00mm (1/2'')
- See photo for further size info
To Suit:
Massey Ferguson - 765
Alternate Numbers:
Ferguson - 319521M1, 319521M91
S210
S210
Lower Link Implement Weld In Pin 22x146mm Cat 1
- Availability: In Stock
-
AU$7.95
