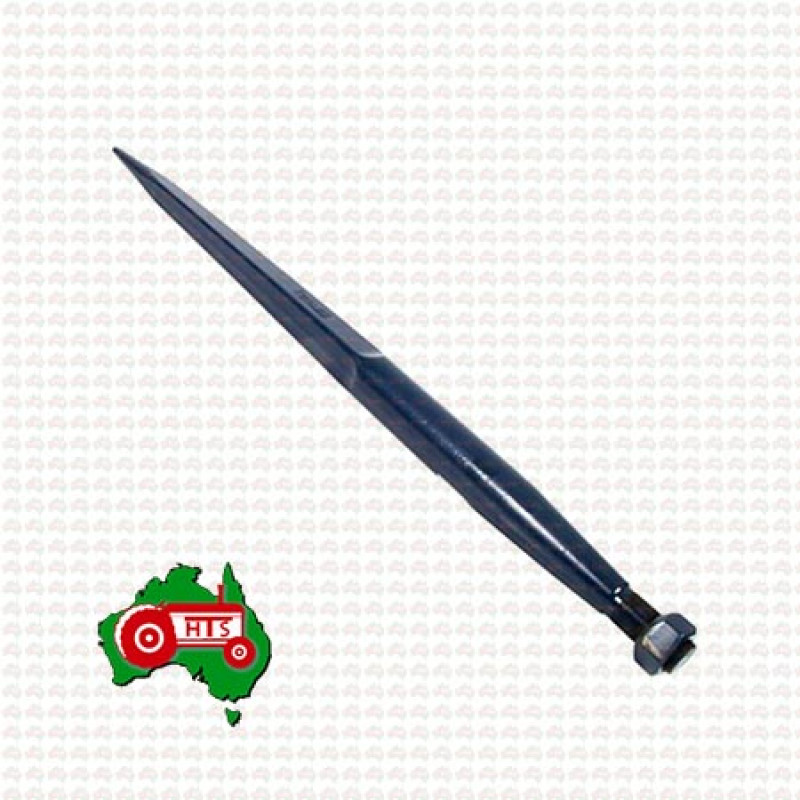

1 x Hay Spear/Tine Conus 3 type
Tine length : 1400mm (55")
CONUS 3 type with a M33 (33mm) nut included
60Si7 heat treated alloy spring steel
Bright machined taper for positive retention
Prevision forged powder coated finish
Tine strength below – please note that depending on which Conus type you purchase reflects the tensile strength
Conus 1 tyne = 866KG, 1910Lbs at 500 mm out from end of taper that goes into socket.
Conus 2 tyne = 3400KG 7644 Lbs at 500mm out from end of taper that goes into socket.
Conus 3 tyne = 2800KG,6173Lbs at 1meter out from end of taper that goes into socket.
Conus 1 tyne = 866KG, 1910Lbs at 500 mm out from end of taper that goes into socket.
Conus 2 tyne = 3400KG 7644 Lbs at 500mm out from end of taper that goes into socket.
Conus 3 tyne = 2800KG,6173Lbs at 1meter out from end of taper that goes into socket.
Tightening Torque for Nut: 1000 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty
B84012
Failure at thread due to insufficient Torque is NOT covered by Warranty
B84012
CONUS 3 - 1400mm Straight Tine
- Availability: In Stock
-
AU$289.99
